Documentation Syntax Notes
A brief explanation of the syntax used throughout this documention is given below.
Most documentation pages for USFM/USX markup contain one or more of the following sections.
Summary
A summary of the 1) type of markup found in the current documentation section (e.g. paragraphs, characters), notes, or 2) a specific instance of a markup type (e.g. p - paragraph, nd - Name of God, footnote).
Syntax
A summary of the markup syntax is given in both USFM and USX syntax. The following conventions are used:
-
markup: Monospaced text with a grey background is the explicit marker text required. -
placeholder : Red, italic text is a placeholder. The content which should be provided at the position of the placeholder is described below the syntax summary.
-
@attribute : Required or optional attributes are listed as placeholders in red, italic text preceded by an @ symbol.
-
placeholder or @attribute content which is required is identified by an * asterisk.
Valid In
The document division, paragraph, or note type where the selected markup is valid.
Updated
The version of USFM/USX when this markup was updated, corrected, or possibly deprecated.
|
Throughout this documentation, texts shown between square brackets, with a grey background, in |
Diagrams
'Railroad' diagrams illustrate the syntax for components of the USFM/USX schema. Where a diagram is provided, USFM and USX expressions are given in separate tabs. Railroad diagrams for the paragraph element are shown below:
-
USFM
-
USX
-
Diagrams are read from left to right.
-
USFM markup is shown in containers with a green background. USX is shown with a purple background.
-
Explicit markup text is shown within quotation marks, or (for USX) within XML wedges
<>. -
Markup text which matches a regular expression pattern is shown between 2 forward slashes
/…/ -
Markup text from an enumeration of options are shown within a dotted outline.
-
Terminals are shown in containers with rounded corners, and labelled in
ALLCAPS. The defintions for terminal labels are given in the glossary. -
A container identifying a markup type is shown with square corners, with a label identifying the type (e.g. Footnote, CrossReference, Char, Milestone, Verse).
Examples

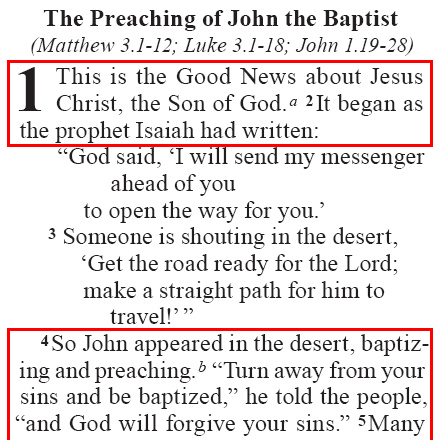

One or more working text examples in USFM, USX, and USJ are given, usually together with a formatting sample. Examples for p - paragraph are shown below:
-
USFM
-
USX
-
USJ
\id MRK
\c 1
\s1 The Preaching of John the Baptist
\r (Matthew 3.1-12; Luke 3.1-18; John 1.19-28)
\p
\v 1 This is the Good News about Jesus Christ, the Son of God.
\v 2 It began as the prophet Isaiah had written:
\q1 “God said, ‘I will send my messenger ahead of you
\q2 to open the way for you.’
\q1
\v 3 Someone is shouting in the desert,
\q2 ‘Get the road ready for the Lord;
\q2 make a straight path for him to travel!’”
\p
\v 4 So John appeared in the desert, baptizing and preaching. “Turn away from your
sins and be baptized,” he told the people, “and God will forgive your sins.”<usx version="3.1">
<book code="MRK" style="id"/>
<chapter number="1" style="c" sid="MRK 1"/>
<para style="s1">The Preaching of John the Baptist</para>
<para style="r">(Matthew 3.1-12; Luke 3.1-18; John 1.19-28)</para>
<para style="p">
<verse number="1" style="v" sid="MRK 1:1" />This is the Good News about Jesus
Christ, the Son of God. <verse eid="MRK 1:1" /><verse number="2" style="v"
sid="MRK 1:2" />It began as the prophet Isaiah had written:</para>
<para style="q1" vid="MRK 1:2">“God said, ‘I will send my messenger ahead of you
</para>
<para style="q2" vid="MRK 1:2">to open the way for you.’<verse eid="MRK 1:2" />
</para>
<para style="q1">
<verse number="3" style="v" sid="MRK 1:3" />Someone is shouting in the desert,
</para>
<para style="q2" vid="MRK 1:3">‘Get the road ready for the Lord;</para>
<para style="q2" vid="MRK 1:3">make a straight path for him to travel!’”
<verse eid="MRK 1:3" /></para>
<para style="p">
<verse number="4" style="v" sid="MRK 1:4" />So John appeared in the desert,
baptizing and preaching. “Turn away from your sins and be baptized,” he told
the people, “and God will forgive your sins.”<verse eid="MRK 1:4" /></para>
</usx>{
"type": "USJ",
"version": "3.1",
"content": [
{
"type": "book",
"marker": "id",
"code": "MRK",
"content": []
},
{
"type": "chapter",
"marker": "c",
"number": "1",
"sid": "MRK 1"
},
{
"type": "para",
"marker": "s1",
"content": ["The Preaching of John the Baptist"]
},
{
"type": "para",
"marker": "r",
"content": ["(Matthew 3.1-12; Luke 3.1-18; John 1.19-28)"]
},
{
"type": "para",
"marker": "p",
"content": [
{
"type": "verse",
"marker": "v",
"number": "1",
"sid": "MRK 1:1"
},
"This is the Good News about Jesus Christ, the Son of God. ",
{
"type": "verse",
"marker": "v",
"number": "2",
"sid": "MRK 1:2"
},
"It began as the prophet Isaiah had written:"
]
},
{
"type": "para",
"marker": "q1",
"content": ["“God said, ‘I will send my messenger ahead of you"]
},
{
"type": "para",
"marker": "q2",
"content": ["to open the way for you.’"]
},
{
"type": "para",
"marker": "q1",
"content": [
{
"type": "verse",
"marker": "v",
"number": "3",
"sid": "MRK 1:3"
},
"Someone is shouting in the desert, "
]
},
{
"type": "para",
"marker": "q2",
"content": ["‘Get the road ready for the Lord;"]
},
{
"type": "para",
"marker": "q2",
"content": ["make a straight path for him to travel!’”"]
},
{
"type": "para",
"marker": "p",
"content": [
{
"type": "verse",
"marker": "v",
"number": "4",
"sid": "MRK 1:4"
},
"So John appeared in the desert, baptizing and preaching. “Turn away from your sins and be baptized,” he told the people, “and God will forgive your sins.”"
]
}
]
}
