thr#
Summary
- Description
-
Table column heading cell - right aligned.
-
The variable
#represents the table column number.
-
|
Syntax notes
In USFM, a table is composed by a series of paragraphs marked with \tr. The content for cells is marked with character types for tables, such as \th#. In USX the sequence of \tr rows is composed within a |
- Syntax
-
-
USFM:
\thr#content-
Use a dash
-between a range of column numbers to indicate that the columns should be spanned. Example:\thr1-2
-
-
USX:
<cell style="thr#"@colspan @align>content</cell>- colspan.
-
Column spanning is indicated with an optional
colspanattribute. Example:<cell style="thr1" colspan="2" align="start"> - align
-
Cell alignment =
start|center|end. Represents 'left', 'center', and 'right' respectively in left-to-right direction texts, and 'right', 'center', 'left' in right-to-left direction texts. - content
-
The cell text.
-
- Style Type
- Valid In
-
[Table] - Added
-
1.0
Examples
-
USFM
-
USX
-
USJ

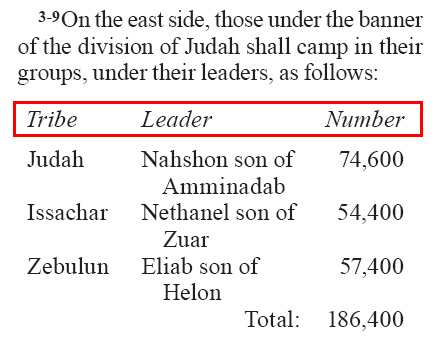

Example 1. Numbers 2.10-16 (GNT)
\id NUM
\c 2
\p
\v 10-16 On the south, those under the banner of the division of Reuben shall
camp in their groups, under their leaders, as follows:
\tr \th1 Tribe \th2 Leader \thr3 Number
\tr \tc1 Reuben \tc2 Elizur son of Shedeur \tcr3 46,500
\tr \tc1 Simeon \tc2 Shelumiel son of Zurishaddai \tcr3 59,300
\tr \tc1 Gad \tc2 Eliasaph son of Deuel \tcr3 45,650
\tr \tcr1-2 Total: \tcr3 151,450Example 2. Numbers 2.10-16 (GNT)
<usx version="3.1">
<book code="NUM" style="id"/>
<chapter number="2" style="c" sid="NUM 2"/>
<para style="p">
<verse number="10-16" style="v" sid="NUM 2:10-16"/>On the south, those under the
banner of the division of Reuben shall camp in their groups, under their
leaders, as follows:</para>
<table>
<row style="tr">
<cell style="th1" align="start">Tribe </cell>
<cell style="th2" align="start">Leader </cell>
<cell style="thr3" align="end">Number</cell>
</row>
<row style="tr">
<cell style="tc1" align="start">Reuben </cell>
<cell style="tc2" align="start">Elizur son of Shedeur </cell>
<cell style="tcr3" align="end">46,500</cell>
</row>
<row style="tr">
<cell style="tc1" align="start">Simeon </cell>
<cell style="tc2" align="start">Shelumiel son of Zurishaddai </cell>
<cell style="tcr3" align="end">59,300</cell>
</row>
<row style="tr">
<cell style="tc1" align="start">Gad </cell>
<cell style="tc2" align="start">Eliasaph son of Deuel </cell>
<cell style="tcr3" align="end">45,650</cell>
</row>
<row style="tr">
<cell style="tcr1" align="end" colspan="2">Total: </cell>
<cell style="tcr3" align="end">151,450</cell>
</row>
...
</table>
</usx>Example 3. Numbers 2.10-16 (GNT)
{
"type": "USJ",
"version": "3.1",
"content": [
{
"type": "book",
"marker": "id",
"code": "NUM",
"content": []
},
{
"type": "chapter",
"marker": "c",
"number": "2",
"sid": "NUM 2"
},
{
"type": "para",
"marker": "p",
"content": [
{
"type": "verse",
"marker": "v",
"number": "10-16",
"sid": "NUM 2:10-16"
},
"On the south, those under the banner of the division of Reuben shall camp in their groups, under their leaders, as follows:"
]
},
{
"type": "table",
"content": [
{
"type": "table:row",
"marker": "tr",
"content": [
{
"type": "table:cell",
"marker": "th1",
"align": "start",
"content": ["Tribe "]
},
{
"type": "table:cell",
"marker": "th2",
"align": "start",
"content": ["Leader "]
},
{
"type": "table:cell",
"marker": "thr3",
"align": "end",
"content": ["Number"]
}
]
},
{
"type": "table:row",
"marker": "tr",
"content": [
{
"type": "table:cell",
"marker": "tc1",
"align": "start",
"content": ["Reuben "]
},
{
"type": "table:cell",
"marker": "tc2",
"align": "start",
"content": ["Elizur son of Shedeur "]
},
{
"type": "table:cell",
"marker": "tcr3",
"align": "end",
"content": ["46,500"]
}
]
},
{
"type": "table:row",
"marker": "tr",
"content": [
{
"type": "table:cell",
"marker": "tc1",
"align": "start",
"content": ["Simeon "]
},
{
"type": "table:cell",
"marker": "tc2",
"align": "start",
"content": ["Shelumiel son of Zurishaddai "]
},
{
"type": "table:cell",
"marker": "tcr3",
"align": "end",
"content": ["59,300"]
}
]
},
{
"type": "table:row",
"marker": "tr",
"content": [
{
"type": "table:cell",
"marker": "tc1",
"align": "start",
"content": ["Gad "]
},
{
"type": "table:cell",
"marker": "tc2",
"align": "start",
"content": ["Eliasaph son of Deuel "]
},
{
"type": "table:cell",
"marker": "tcr3",
"align": "end",
"content": ["45,650"]
}
]
},
{
"type": "table:row",
"marker": "tr",
"content": [
{
"type": "table:cell",
"marker": "tcr1",
"align": "end",
"colspan": "2",
"content": ["Total: "]
},
{
"type": "table:cell",
"marker": "tcr3",
"align": "end",
"content": ["151,450"]
}
]
},
" ... "
]
}
]
}
